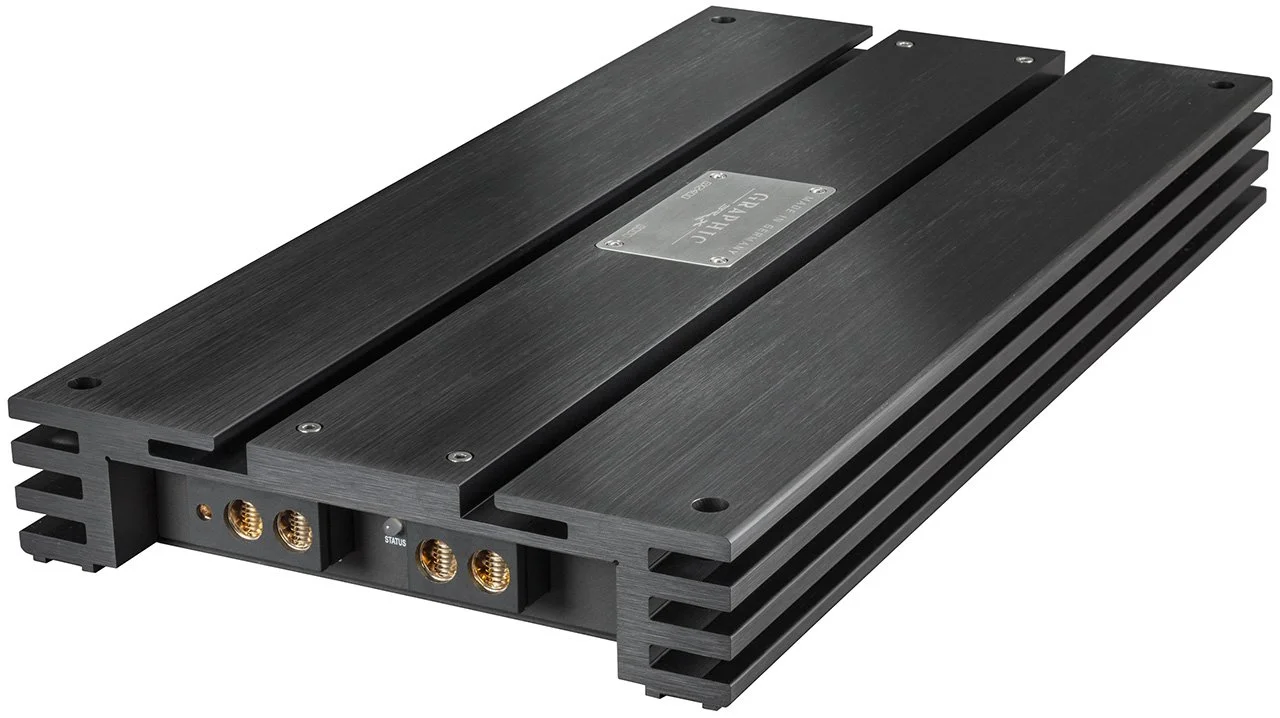

BRAX GX2400 High End 4 - Channel Amplifier

With our BRAX X2000 / X2400 amplifiers, we once set milestones in high-end car audio history. The successor models BRAX GX2000 and BRAX GX2400 herald a new era of audiophile innovation. In addition, the latest Class AB technology was combined with an elegant, puristic design.

The well thought-out circuit board layout with short signal paths and the selection of components "Made in Germany" ensure unadulterated listening pleasure, so that the use of crossovers and filter functions is completely dispensed with. The linear design underlines the high-end philosophy of the BRAX brand.

In order to meet our high quality standards and to avoid manufacturing tolerances and performance differences, only hand-selected transistors are used in the manufacture of each GX amplifier. For this purpose, they are selected in up to 300 categories with a specially developed measuring device.

The gold-plated power connection terminals, which can accommodate cables with a diameter of up to 50 mm², and the separate connection for a BRAX IPC capacitor directly to the switching transistors, make another important contribution to an ideal power supply.

In short: Thanks to their music reproduction that is as natural as it is precise, the GX2000 and GX2400 more than deserve the designation high-end amplifiers. They are available in either classic black or silver, with a short or long heat sink. The whole thing is rounded off by the packaging in a noble wooden box.

features

• Low connection resistance thanks to solid, gold-plated connections for power supply cables up to 50 mm² and for speaker cables up to 6 mm²

• Separate connection for a BRAX IPC directly to the switching transistors

• Signal inputs with high-end signal capacitors make an indispensable contribution to perfect and unadulterated sound reproduction

• The amplifier is available in black or silver, and with a short or long heatsink

• Specially developed transformers with highly efficient core materials guarantee a total output of over 1,000 watts

• The massive heat sink made of a special aluminum alloy ensures perfect cooling of the power supply and output stage transistors

• 32 hand-selected high-end MOSFET transistors that ensure brilliant sound

• The level controls for setting the input sensitivity are located under the nameplate and thus ensure a puristic design of the power amp

• Setting range 1.0 V to 8.0 V

• Handmade in Germany

• Technical specifications

  Power RMS

• @ 4 ohms4 x 150 watts

• @ 2 ohms4 x 240 watts

• @ 1 ohms- - bridged to 4 ohms

• 2 x 480 watts- bridged to 2 ohms

• Amplifier technology Class AB

• Inputs 4 x RCA
  1 x Remote In

• Input Sensitivity RCA 1.0 - 8.0 volts

• Input impedance RCA 10k ohms

• Outputs 4 x speaker output

• Frequency Range 10Hz - 80kHz

• Signal-to-noise ratio analog input > 120 dB (A-weighted)

• Total Harmonic Distortion (THD) <0.0008%

• Damping Factor > 1000

• Operating Voltage 9 - 16 volts (max. 5 sec down to 6 volts)

• No-load current consumption 3.5A _

• Fuse 4 x 30 A LP-Mini plug-in fuse

• Additional features Color Protection System, BRAX Power Stabilizer connection, start-stop capability

• Dimensions (H x W x D) Heat sink "Short": 53 x 237.5 x 433 mm
  Heat sink "Long": 53 x 237.5 x 473 mm

• net weight Heatsink "Short": 8.2 kg
  Heatsink "Long": 8.6 kg
