HELIX M ONE X Monoblock Amplifier
Small, efficient and uncompromisingly stable.
Highly compact monoblock for subwoofer applications.
Designed from latest Class D technology this tiny amp controls speakers with 1 Ohm impedance.
Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.
Small, efficient and uncompromisingly stable.
Highly compact monoblock for subwoofer applications.
Designed from latest Class D technology this tiny amp controls speakers with 1 Ohm impedance.
Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.
Small, efficient and uncompromisingly stable.
Highly compact monoblock for subwoofer applications.
Designed from latest Class D technology this tiny amp controls speakers with 1 Ohm impedance.
Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.

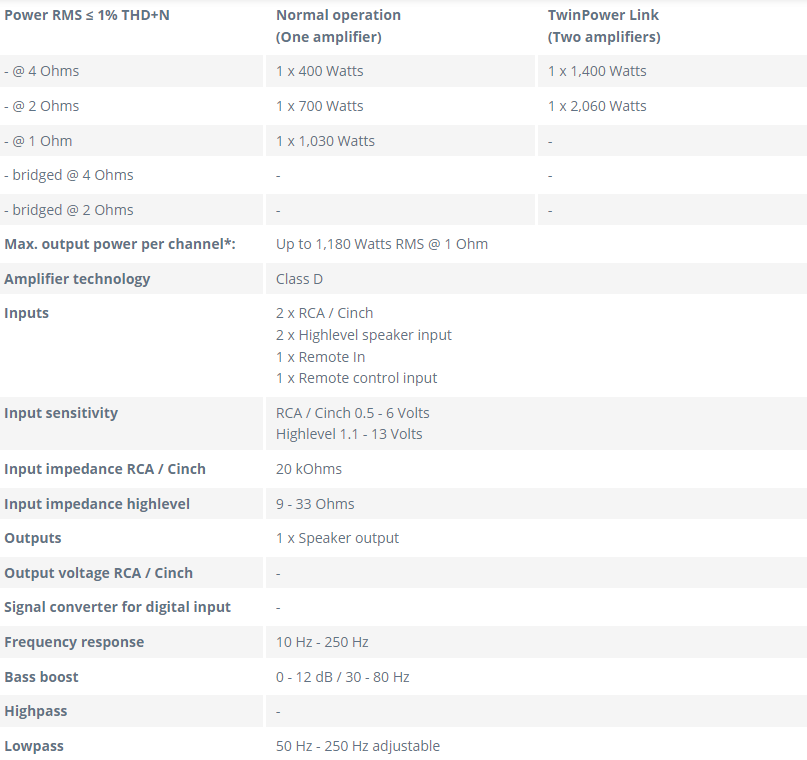

Features
Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
Start-Stop capability down to 6V supply voltage
Smart highlevel input with ADEP circuit and Auto Turn-On function
Integrated, active crossover with lowpass, bass boost, subsonicand phase control
TwinPower Link for connecting two amplifiers in bridged mode
Bass remote control for volume adjustment
Low heat dissipation thanks to extraordinary efficiency
Special features
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M ONE X.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M ONE X assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
