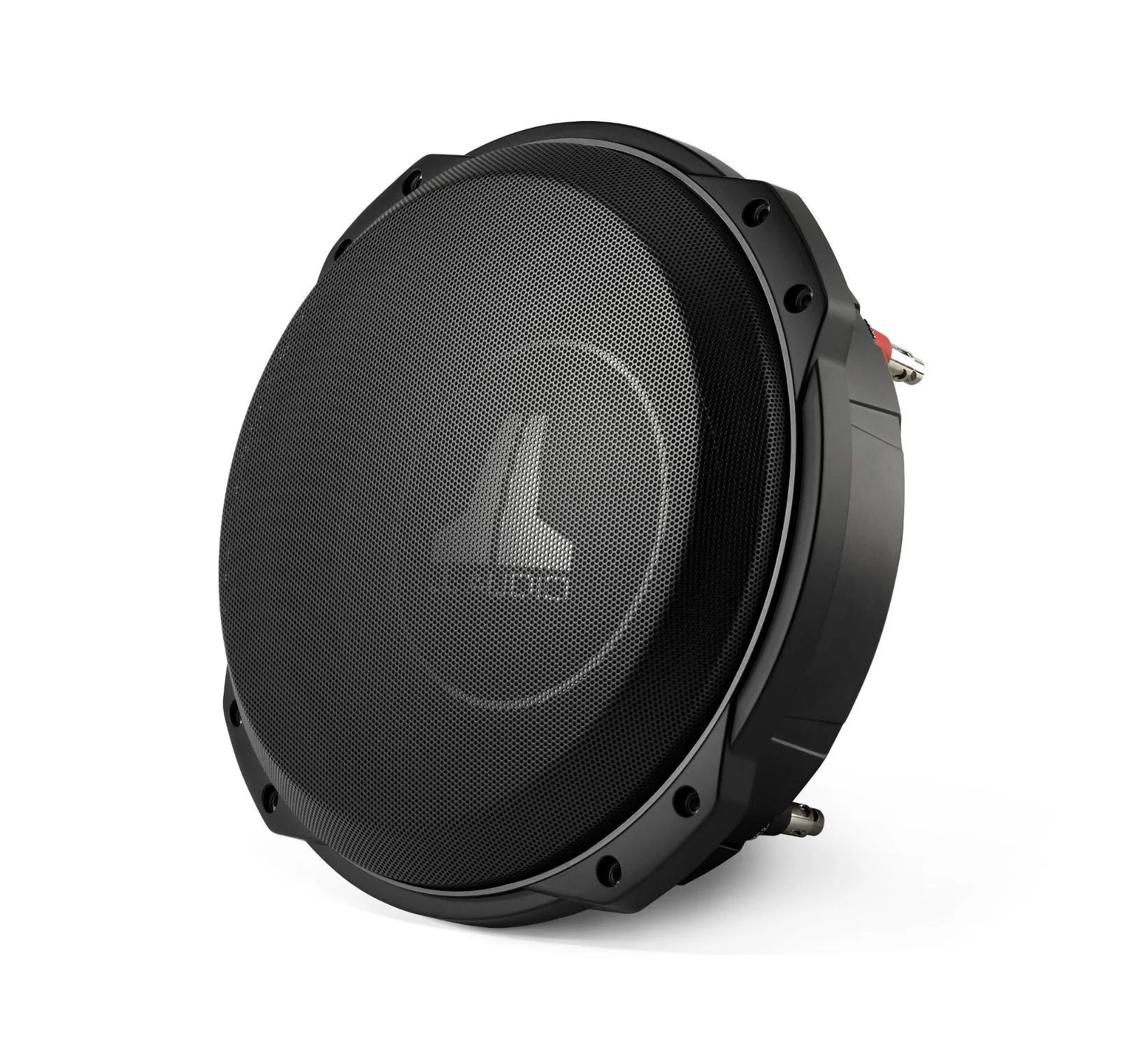

JL Audio 10" TW3 THIN-LINE SUBWOOFER 400W DUAL 4 OHM / DUAL 8 OHM

World-class performance and refined sound quality for depth-challenged applications.

Building on the core technology of our TW5v2 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater linear excursion than the TW5v2’s and the much deeper W3v3’s.

To allow this remarkable feat to be achieved, JL Audio’s thin-line woofer technology compresses the architecture of the TW3’s using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and the spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs.

TW3’s are optimized for extremely small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints.

Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.

TECHNICAL DATA:

Impedance (Ohms) Dual 4
Voice Dual Coil
RMS Power 300w
Peak Power 400w
Sensitivity 82.1dB
Height 28.4cm
Width 28.4cm
Depth 11.2cm
Protrusion 2.9cm
Mounting Depth 8.3cm
Mounting Hole Diameter 24.4cm
Grills JLSGR-10TW3 (Sold Separately)
