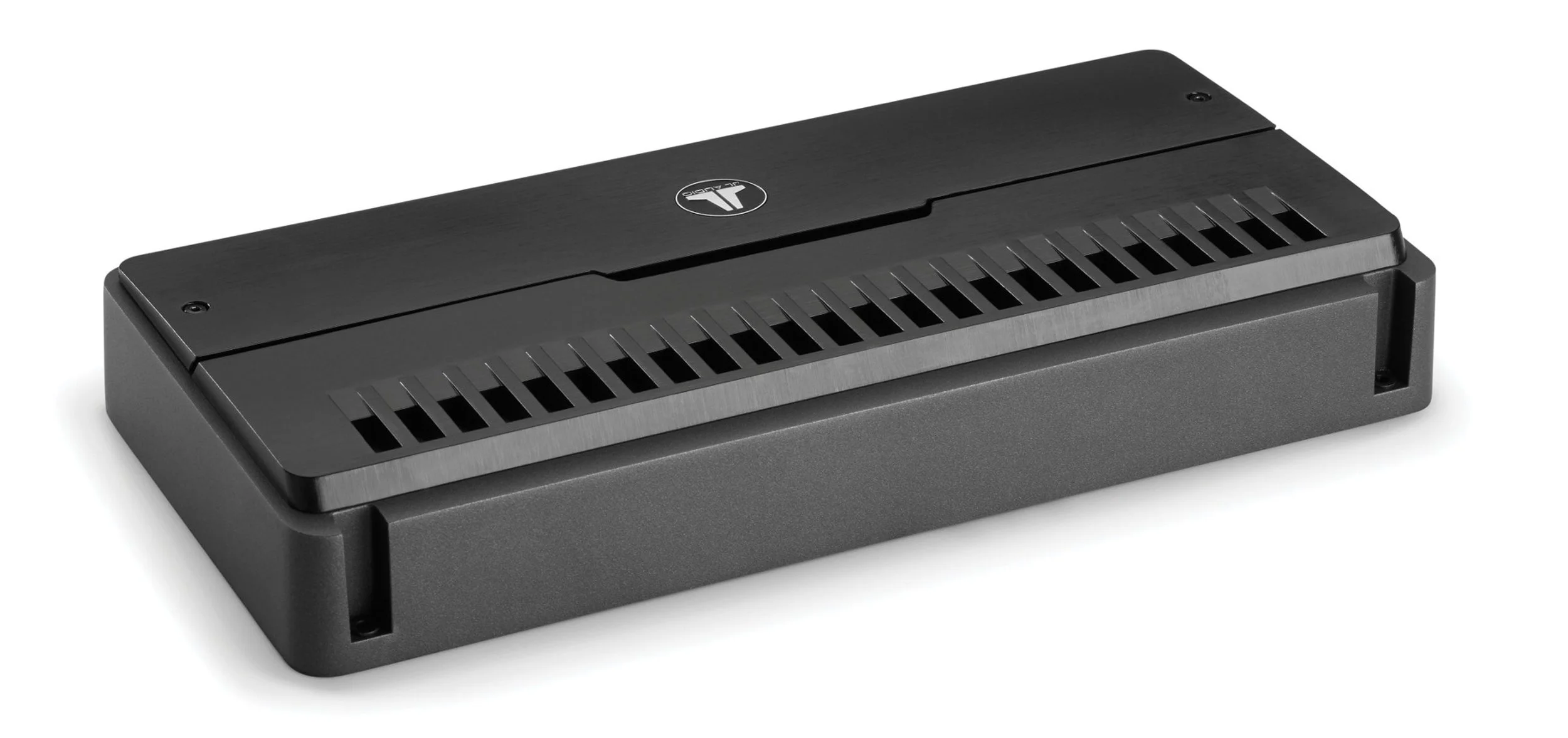

JL Audio RD900/5 5 Ch. Class D System Amplifier, 900 W

Sleek and powerful, RD amplifiers offer outstanding amplifier performance and value.

RD amplifiers employ JL Audio’s exclusive NexD™ switching technologies to generate loads of power with exceptional efficiency, reducing current draw and heat. Each model features a modern, industrial design with a high performance look and finish. For ease of installation and making adjustments, all connections are placed along one side of the amplifier with the controls on top, concealed beneath a removable protective cover.

All RD models are equipped with studio-grade signal processing and automatic turn-on capabilities (via signal sensing and DC-offset sensing), for maximum flexibility. Differential-balanced inputs are also on-hand to combat noise and maximize compatibility with a wide range of signal types. Two additional features have been included to simplify installation and set-up: LED clipping indicators to streamline the input level setting process, and "Input Type" switches on the stereo channel sections, eliminating the need for Y-adaptors when bridging.

The look is amazing, and the performance backs it up.

5-Channel Class D System Amplifier

Speaker channels
70W x 4 @ 4Ω - 14.4V
100W x 4 @ 2Ω - 14.4V

Sub channel
225W x 1 @ 4Ω - 14.4V
500W x 1 @ 2Ω - 14.4V

Crafted as an all-in-one, total system solution, the JL Audio RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with the exclusive NexD™ switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier.

Conveniently located on top of the RD900/5, you’ll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility.

LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-colour LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer’s output remotely from the driver’s seat.

TECHNICAL DATA:

RMS Power @ 14.4V 70W x 4 @ 4Ω. 100W x 4 @ 2Ω. 200W x 2 @ 4Ω Bridged
225W x 1 @ 4Ω Sub Channel. 325W x 1 @ 3Ω Sub Channel
500W x 1 @ 2Ω Sub Channel
Output Channels 5
Voltage 12v
Class D
Features NexD Switching
Differential Balanced Inputs
Fuse Rating 80A
Cable Gauge 4awg
Amp Turn-On Signal Sensing
DC Offset
12V
Frequency Response 12-22kHz
10-500 Sub Channel
Signal-to-Noise Ratio 104dB
Filter High-Pass
Low-Pass
ControllerRBC-1 (Sold Separately)
Input Channels 2 / 4 / 6
Input Type High Level / Low Level
Input Sensitivity Low Level 200mV-2V
Input Sensitivity High Level 800mV-8V
Height 5.4cm
Width 37.2cm
Depth 17.7cm
