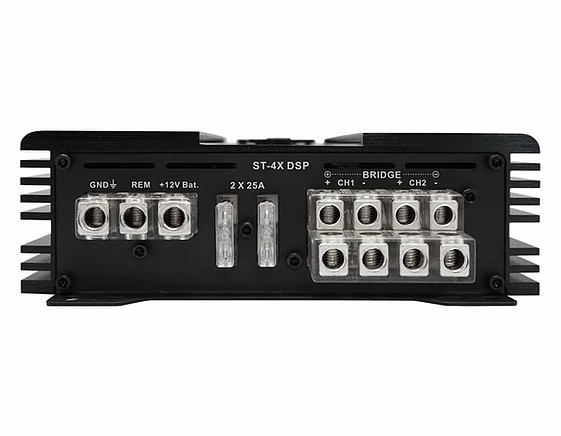

Zapco ST-4X DSP

Features and Functions

• 4-Channel, Full Range, Class A/B

• On-Board, Full Function, 6-ch. Digital Signal Processing

• High-pass and low-pass filters, phase control, signal delay, and 15 channels of parametric equalization on each channel

• BT Streaming: Bluetooth Port for external APTX HD Module (optional)

Specifications

• Power @ 4Ω: 4 x 65 watts

• THD @ Rated Power  < 0.5% THD

• Power @ 2Ω: 4 x 95 watts

• Power Bridged @ 4Ω: 2 x 190W RMS

• Signal to Noise Ratio > 90dB

• THD + Noise < 0.2%

• Channel Separation  >60dB

• Frequency Response 15Hz to 30KHz ±1dB

• Dimensions in mm: 160(W) x 52(H) x 282(L) Overall: 160(W) x 52(H) x 320(L)
